Logistic Regression

"Redoing Logistic Regression from scratch in Python"
24 December 2023

What is Logistic Regression?

Logistic Regression is one of many supervised machine learning algorithms, just like Linear Regression. Instead of predicting a continuous value, it predicts the probability of an event happening, or something is true or false. So, this algorithms is mostly used for binary classification problems. Here are the use cases of Logistic Regression:

  1. Predict if an email is spam or not.
  2. Predict if a credit card transaction is fraudulent or not.
  3. Predict if a customer will churn or not.
  4. Predict if a patient has cancer or not.

However, it also has the same limitations as Linear Regression, such as:

  1. It is a linear model, so it cannot capture complex non-linear relationships. In other words, it assumes that the data is linearly separable.
  2. It assumes that the data is independent of each other. In other words, it assumes that the data is not correlated with each other.
  3. It is sensitive to outliers.

Mathematics Behind Logistic Regression

First, Logistic Regression still uses Linear Equation used in Linear Regression, and it's expressed as:

y^=β0+β1x\hat{y} = \beta_0 + \beta_1x

Second, we are going to need Sigmoid function. This funciton's sole job is to predict by converting the output of the linear equation into a probability value between 00 and 11.

σ(z)=11+ez\sigma(z) = \frac{1}{1 + e^{-z}}

where z=β0+β1×xz = \beta_0 + \beta_1 \times x. Then the sigmoid function can be rewritten as:

σ(β0+β1x)=P(yx)=11+e(β0+β1x)\sigma(\beta_0 + \beta_1x) = P(y | x) = \frac{1}{1 + e^{-(\beta_0 + \beta_1x)}}

After acquiring the probability value from the Sigmoid function, we can use a threshold value to classify into one or another. To generalize, we can use the following equation to predict the probability of an event occurring:

Once we have the probability of an event occuring, we then use a threshold value to round up the probability value to either 00 or 11. If P(yx)0.5P(y | x) \geq 0.5, then the data is classified as 11, otherwise it is classified as 00.

Similar to what we did in the Linear Regression post, we need to estimate the best β0\beta_0 and β1\beta_1 using the Gradient Descent algorithm. What the Gradient Descent algorithm does is to update the β0\beta_0 and β1\beta_1 values based on the cost function and the learning rate.

This example is just a simple linear model, we are going to use the following equations to update intercept and coefficient:

β0=β0αβ0J(β0,β1,,βp)β1=β1αβ1J(β0,β1,,βp)x1βp=βpαβnJ(β0,β1,,βp)xp\begin{gather*} \beta_0 = \beta_0 - \alpha \frac{\partial}{\partial \beta_0} J(\beta_0, \beta_1, \dots, \beta_p) \\ \beta_1 = \beta_1 - \alpha \frac{\partial}{\partial \beta_1} J(\beta_0, \beta_1, \dots, \beta_p)x_1 \\ \cdots \\ \beta_p = \beta_p - \alpha \frac{\partial}{\partial \beta_n} J(\beta_0, \beta_1, \dots, \beta_p)x_p \\ \end{gather*}

where α\alpha is the learning rate, βp\beta_p is the pp-th parameter, JJ is the cost function, and xpx_p is the pp-th feature.

Since we only have β0\beta_0 and β1\beta_1, we can simplify the equation above to:

β0=β0αβ0J(β0,β1)β1=β1αβ1J(β0,β1)x1\begin{gather*} \beta_0 = \beta_0 - \alpha \frac{\partial}{\partial \beta_0} J(\beta_0, \beta_1) \\ \beta_1 = \beta_1 - \alpha \frac{\partial}{\partial \beta_1} J(\beta_0, \beta_1)x_1 \\ \end{gather*}

Implementation

First things first, we need to import the necessary libraries.

from sklearn.datasets import load_iris
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np

Say that we only have a feature xx, the sepal length, and we want to determine the instance is a Virginica or not. Let's prepare the data.

iris = load_iris()
sepal_length = iris.data[:, 0]
target = iris.target

is_virginica_dict = {0: 0, 1: 0, 2: 1}
is_virginica = np.array([is_virginica_dict[i] for i in target])

species_dict = {0: 'setosa', 1: 'versicolor', 2: 'virginica'}
species_name = np.array([species_dict[i] for i in target])

You might be wondering why we have is_virginica_dict. I need that variable to separate the data so that some data sit at the bottom of the plot and some sit at the top of the plot.

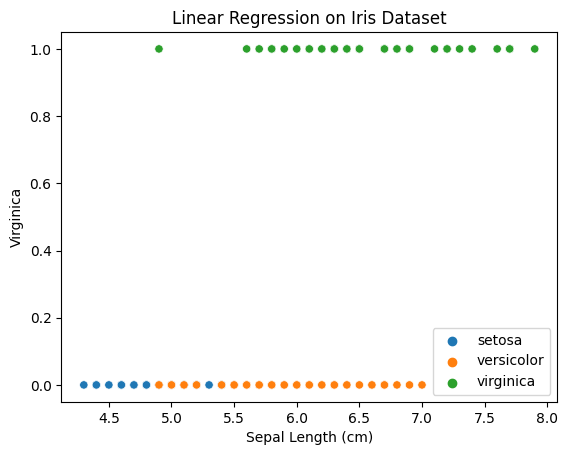

Data points are either sitting at 0 or 1
Data points are either sitting at 0 or 1

So let's add a line like we did in the Linear Regression post with 1.2-1.2 as the intercept and 0.280.28 as the coefficient.

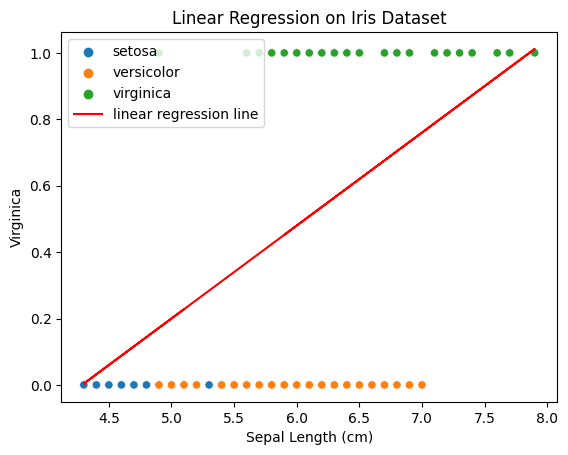

A graph with a Linear Regression line
A graph with a Linear Regression line

It's clear that our data do not follow the pattern that the straight line is showing in the graph. Thus, we need to use Sigmoid function to bend the line, so that the line would look like this:

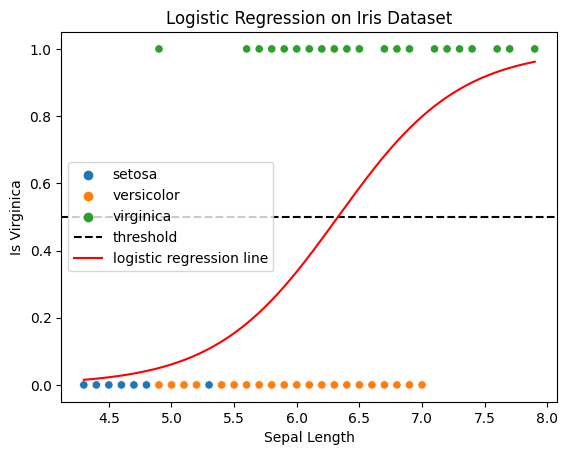

A graph with a Logistic Regression line
A graph with a Logistic Regression line

def accuracy(y_pred, y):
  return np.sum(y_pred == y) / len(y)

def sigmoid(x):
  return 1 / (1 + np.exp(-x))

def linear_function(intercept, coefficient, x):
  return intercept + coefficient * x

def threshold(x):
  return np.where(x > 0.5, 1, 0)

def gradient_descent(x, y, epochs, alpha = 0.01):
  intercept, coefficient = -1.2, 0.28 # initial guess

  for _ in range(epochs):
    y_pred = np.array(
      [
        sigmoid(
          linear_function(intercept, coefficient, i)
        ) for i in x
      ]
    )
    intercept = intercept - alpha * np.sum(y_pred - y) / len(y)
    coefficient = coefficient - alpha * np.sum((y_pred - y) * x) / len(y)

  return intercept, coefficient

Let's train our model for 100,000100,000 times.

intercept, coefficient = gradient_descent(sepal_length, is_virginica, 100000)
predicted_value = np.array([sigmoid(linear_function(intercept, coefficient, i)) for i in sepal_length])
corrected_prediction = threshold(predicted_value)

print('accuracy: ', accuracy(corrected_prediction, is_virginica))
print('intercept: ', intercept)
print('coefficient: ', coefficient)
# accuracy:  0.8
# intercept:  -13.004847396222699
# coefficient:  2.0547824850027654

Not bad, the accuracy is 80%80\%, with 13.00-13.00 as the intercept and 2.052.05 as the coefficient.

You can find the full code in this repository

Conclusion

  1. Logistic Regression is a supervised machine learning algorithm that is used for binary classification problems.
  2. It uses the Sigmoid function to calculate the probability of an event occurring.
  3. It uses a threshold value to roundup the probability value to either 00 or 11. If δ(x)>0.5\delta(x) > 0.5, then the data is classified as 11, otherwise it is classified as 00.

References

  1. Vieira, Tim. Exp-Normalize Trick. https://timvieira.github.io/blog/post/2014/02/11/exp-normalize-trick/
  2. IBM. Logistic Regression. https://developer.ibm.com/articles/implementing-logistic-regression-from-scratch-in-python/
